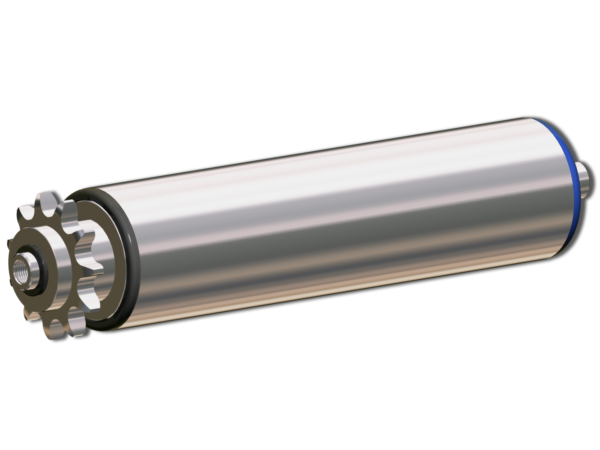

Roller CP-411 T / M T40-T30

Medium Maintenance Driven
    • Ø50X1.5, Ø60×1.5 and Ø80×2 metal tube made of natural, galvanized / galvanized or stainless steel.
    • RAL 7001 gray PVC pipe Ø50×2.3 and Ø63×3 (blue RAL 5015 PVC also possible).
    • Ø12 and Ø14 metal shafts in calibrated natural steel F212 or AISI 303 stainless steel.
    • Z11 ½ ”single pinion, thermoplastic or metallic, fixed or friction.
    • Thermoplastic heads with precision bearing 6000 series 2RS for fixed roller (T40) and with double row of balls for accumulation roller (T30).
    • Maximum load capacity 100 Kg / roll.



Download the Product PDF

Specifications Roller CP-411T / T40 / T30

Specifications Roller CP-411M / T40 / T30

Drive rollers for the transport of medium loads, with thermoplastic heads with precision bearings or deep drawn metal heads. Transmission by round cord, M8 Z20 toothed belt, POLY-V belt or ½ ”chain pitch sprockets in stationary or accumulation applications.
