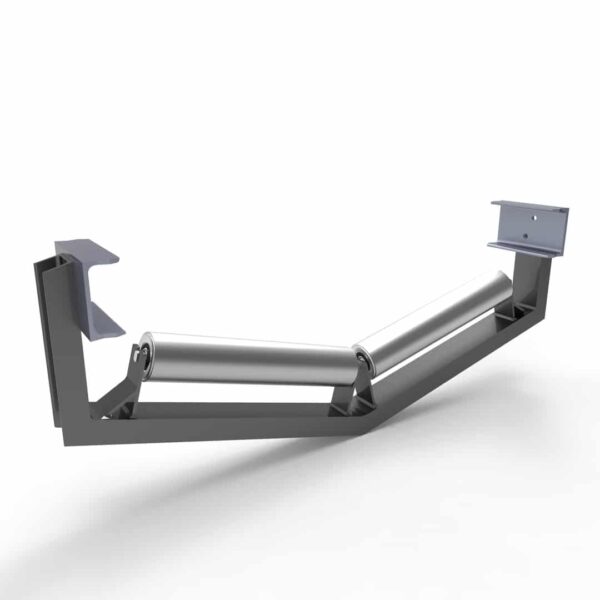

Lower Frames in “V”

  • Frame: Carbon / stainless steel
  • Finish: Painted / Zinc Plated / Sandblasted
  • Frame Profile: UPN Laminate
  • No. of rollers: 2 units
  • Ø Rollers: 60, 63.5, 70, 76, 80, 89, 108, 133 and 156mm
  • Roller Angle: 10º, 15º and 20º.

It is a station for the support of the belt on the return side where the arrangement of its rollers is inclined, taking the belt in a V shape. Suitable for large and heavy belts.
