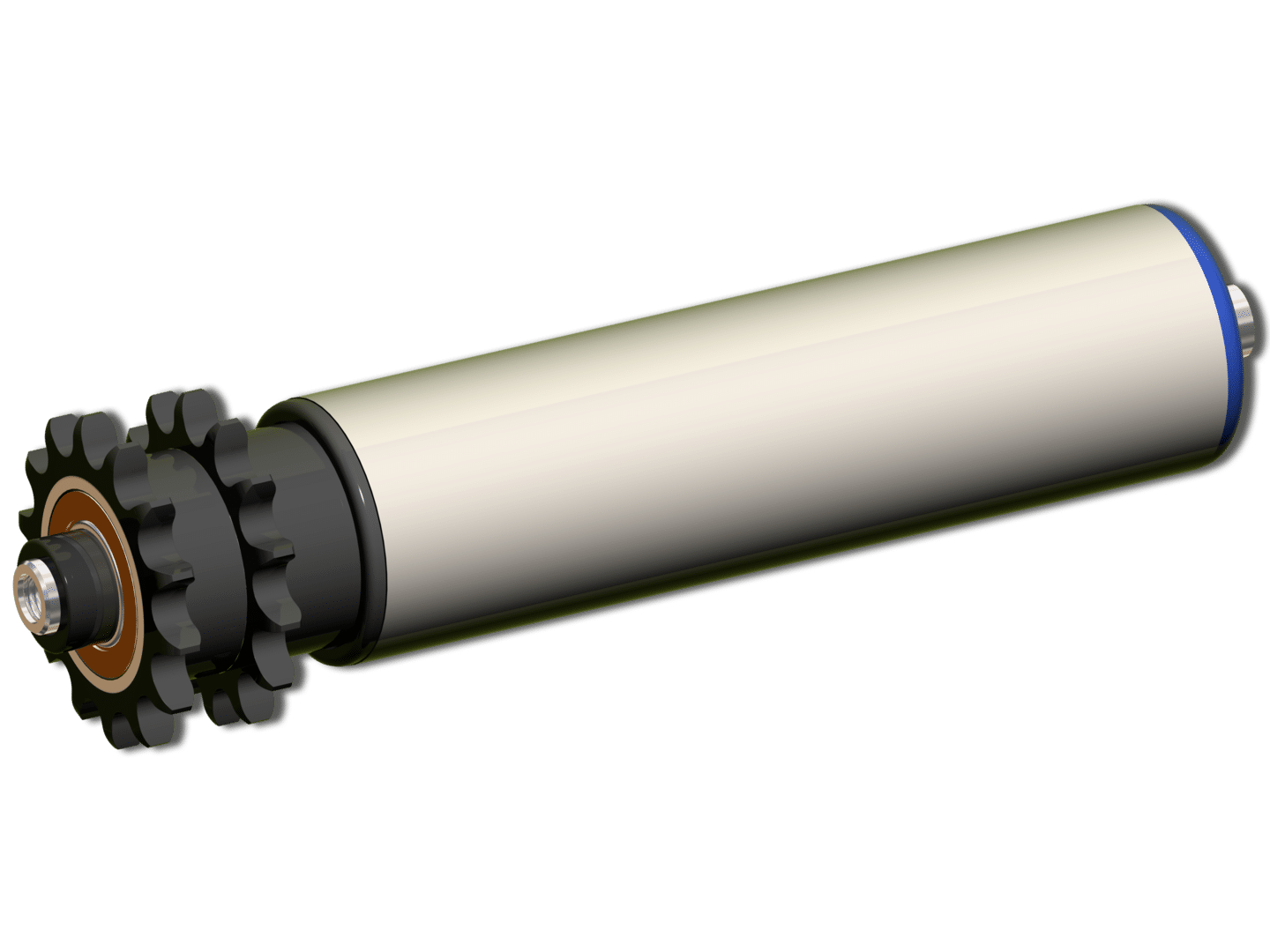

Roller CP-413 T / M T40-T30

Medium Maintenance Driven
  • Ø50X1.5, Ø60×1.5 and Ø80×2 metal tube made of natural, galvanized / galvanized or stainless steel.
  • RAL 7001 gray PVC pipe Ø50×2.3 and Ø63×3 (blue RAL 5015 PVC also possible).
  • Ø12, Ø14 and Ø15 metal shafts in calibrated natural steel F212 or AISI 303 stainless steel.
  • Z14 ½ ”single or double pinion, thermoplastic or metallic, fixed or friction.
  • Thermoplastic heads with precision bearing 6000 series 2RS for fixed roller (T40) and with double row of balls for accumulation roller (T30).
  • Maximum load capacity 100 Kg / roll.

Drive rollers for the transport of medium loads, with thermoplastic heads with precision bearings or deep drawn metal heads. Transmission by round cord, M8 Z20 toothed belt, POLY-V belt or ½ ”chain pitch sprockets in stationary or accumulation applications.
